NOKWON CO., LTD.

탄탄하고 차별화된 기술력을 바탕으로 고객 여러분께 고품질의 제품과 신뢰를 드립니다.

설비현황

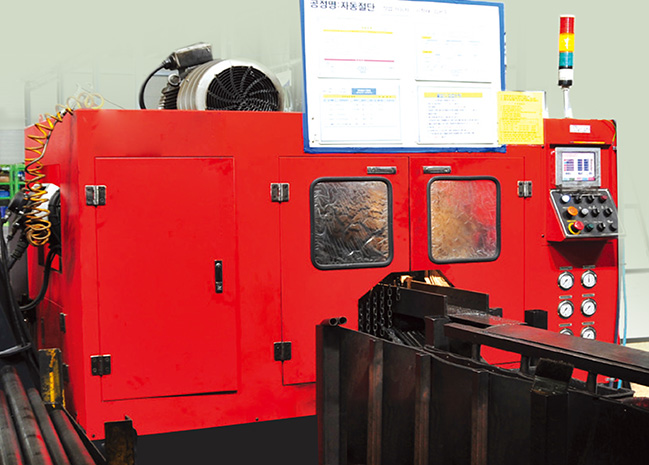

  • CNC Cutting M/C

    Cutting Outer Meter Ø25~ Ø120
    Cuttable Length 10~8,000mm

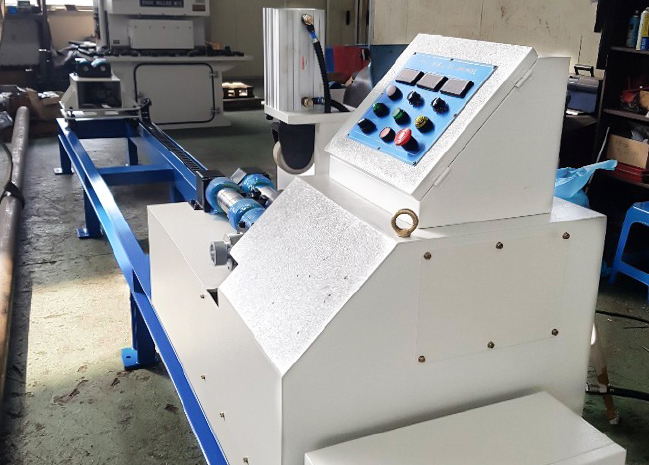

  • Pipe Bevelling

    Machining Outer Meter Ø27.2~Ø114.3
    Machinable Pipe Length 10~2,500mm

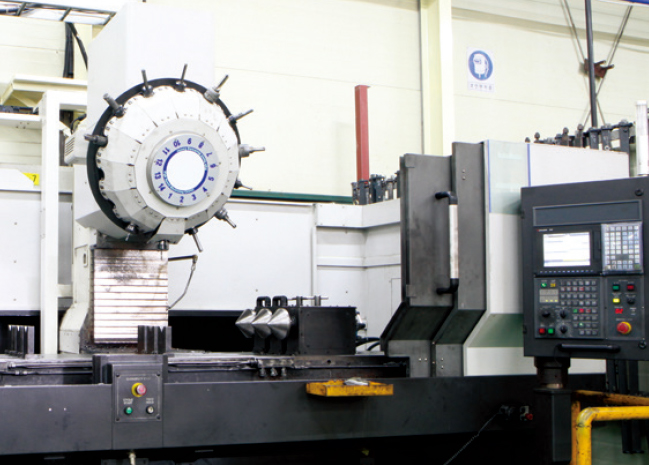

  • Machining Center

    Machine ToolQ’ty 14ea
    Hole Machine Size Ø1.0~Ø32
    Machinable length 10~3,000mm

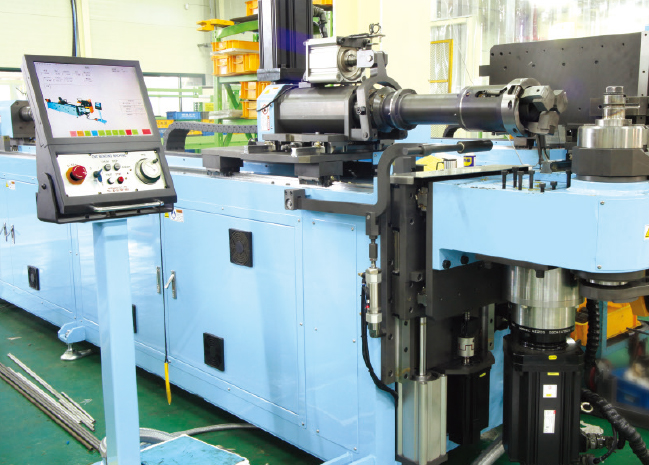

  • CNC Bending M/C

    Bending Outer Meter Ø6.35~Ø60.5
    Thickness : 2.0t ~6.0t
    Maximum Pipe Length 4,800mm
    Minimum Bending Radius 180°, 20R

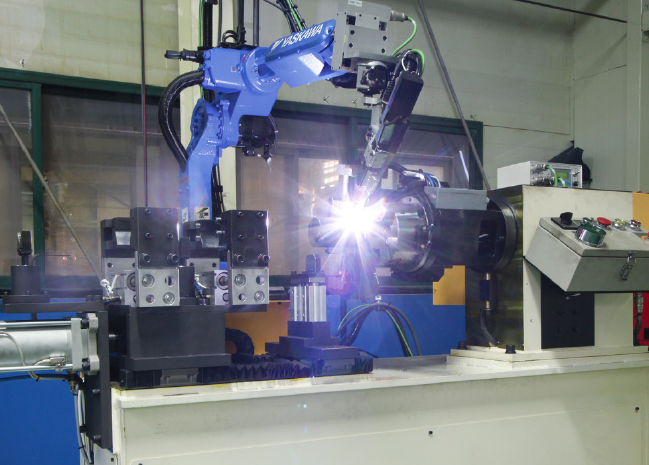

  • Robot Welding M/C

    Welding type Robot TIG Auto Welding
    Outer Diameter Ø42.7~Ø89.1
    Weldable Pipe Length 100mm~6,000mm

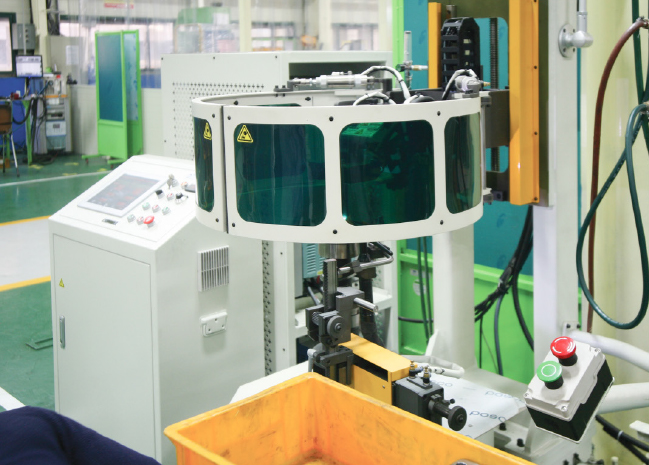

  • Auto Welding M/C

    Welding Type Auto TIG Welding
    Weaving Function 45° (Total 90°)
    Outer Diameter Φ21~Φ89.1
    Weldable Pipe Length 100~4,500MM

  • Spray-Type Painting Line

    Painting type Liquid SPRAY Painting
    Within the range of painting size Size : 700×700×4,500(Max)
    Weight : Max 100kg/hanger
    Equipment composition Booth of Primer and Top, Dryer, Conveyor, Electric Precipitator
